Classical Siamese Rosewood Display Cabinet with Carved Lattice Doors

Buyer Pain Point and Our Solution

The pain point: tall cabinets that arrive warped after a long sea voyage. Distributors and hospitality project buyers sourcing display cabinets for villas, boutique hotels, and cultural spaces keep hitting the same failure: cabinet doors and side panels that were kiln-dried too quickly or glued rigidly into their frames arrive in humid tropical ports or dry northern winters already racked or warped, and machine-routed lattice panels show shallow, uniform carving that reads as imitation to end clients. For a project buyer this means goods that cannot be installed on schedule, warranty claims on a container that has barely been unpacked, and a hotel or villa client whose opening date slips.

Our solution: let the wood move by design instead of fighting it. This display cabinet is built of solid Siamese rosewood (Dalbergia cochinchinensis) heartwood throughout, with side and back panels made as traditional floating panels — each panel edge is tongued into a frame groove with a 4 mm expansion gap on each side, so seasonal humidity changes are absorbed by the structure instead of splitting the frame. Every board is kiln-conditioned to 8-12% moisture over a 4-week cycle with a 48-hour equalization period, the lattice door panels are hand-carved (approximately 20 carving hours per door pair) rather than machine-routed, and each finished frame is load-tested with 80 kg for 24 hours before packing. The value to you: cabinets that hold their doors straight and their joints tight from tropical warehouses to heated showrooms, backed by a 24-month structural warranty — fewer transit and climate claims, on-schedule installations, and a lower real cost per piece sold.

Dimensions at a Glance

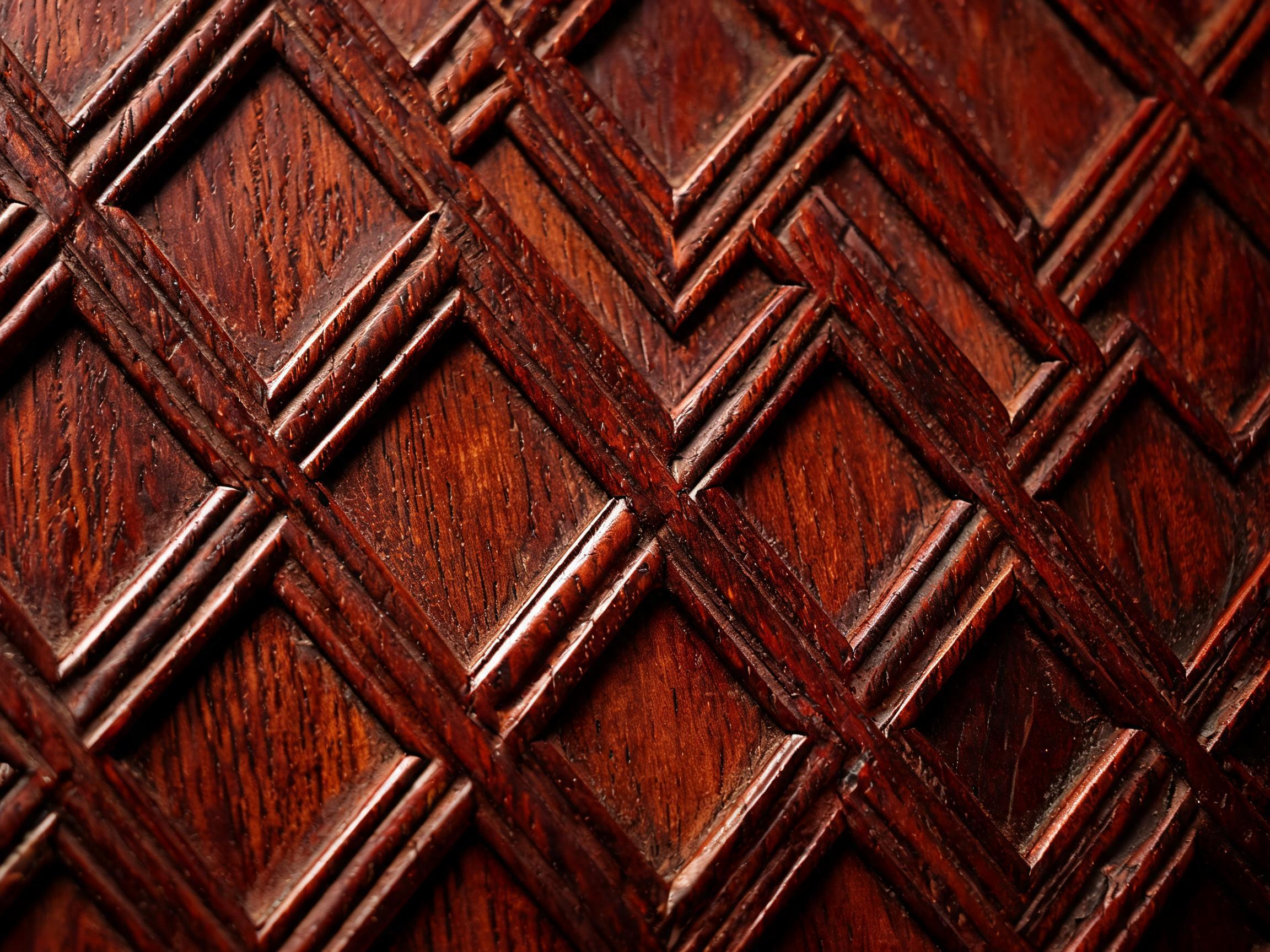

Hand-Carved Lattice Door Panels

The two cabinet doors feature traditional Chinese lattice geometric patterns, hand-carved in medium relief. The lattice grid consists of interlocking diamond motifs that create visual interest when viewed from different angles and cast decorative shadows when interior lighting is installed. Each door panel requires approximately 20 carving hours. The carver uses chisels ranging from 2 mm to 10 mm width, with the interlocking joints being the most technically demanding element because each intersection must be cut precisely to create a clean, tight fit without gaps.

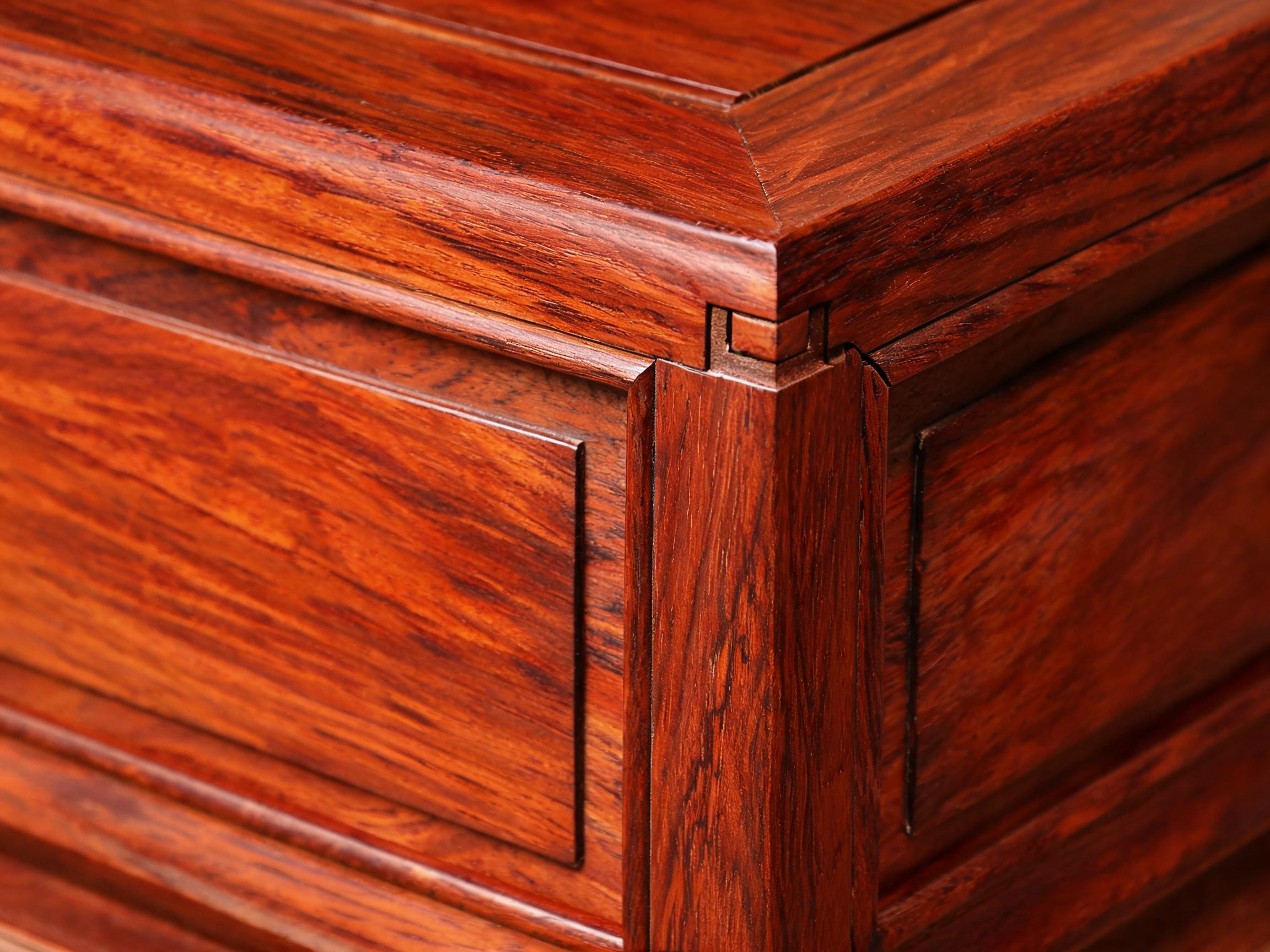

Floating-Panel Construction

The cabinet side panels and back panels are constructed using traditional floating-panel technique. The panel edge is shaped into a tongue that fits into a corresponding groove in the frame, allowing the panel to expand and contract with humidity changes without cracking or pushing the frame apart. This technique is essential for furniture exported to climates with significant humidity variation between seasons.

Manufacturing Workflow

This cabinet follows a five-stage production sequence:

• Stage 1 - Timber Heartwood Selection: Siamese rosewood boards are inspected for heartwood ratio. Only boards with a heartwood percentage exceeding 80 percent proceed to this product line, since heartwood holds carving detail more cleanly and resists dimensional movement.

• Stage 2 - Kiln Conditioning: Selected timber is kiln-dried to 8 to 12 percent moisture content over a 4-week cycle with gradual temperature ramping. A 48-hour equalization period follows to relieve internal stresses.

• Stage 3 - Frame Joinery and Floating Panels: Mortise-and-tenon joints are cut to 18 mm tenon depth on rails and 16 mm on stiles. Floating panels are sized with a 4 mm expansion gap on each side to accommodate seasonal wood movement. Corner blocks are installed at every right-angle intersection.

• Stage 4 - Lattice Carving: Door lattice panels are carved after frame assembly. The carver works from a reference drawing but adjusts the lattice intersections to the grain of each board, ensuring structural integrity at each joint.

• Stage 5 - Seven-Coat Lacquer Finishing: Seven coats of raw lacquer are applied by hand, each cured for 24 hours and rubbed with pumice stone. The final coat achieves a deep satin sheen that highlights the lattice carving depth.

Quality Inspection

• Heartwood Ratio Verification: Each board is visually inspected for sapwood percentage. Boards exceeding 20 percent sapwood are diverted to other product lines.

• Joint Stress Test: Assembled cabinet frames are loaded with 80 kg of distributed weight for 24 hours. Any joint showing visible separation is re-fitted.

• Floating-Panel Movement Check: Panels are inspected for free movement within the frame groove. Any panel that binds is re-sized.

• Carving Depth Check: Lattice relief depths are verified with a depth gauge at five points per door panel.

• Moisture Audit: Three-point readings per cabinet. Readings outside 8 to 12 percent require re-conditioning.

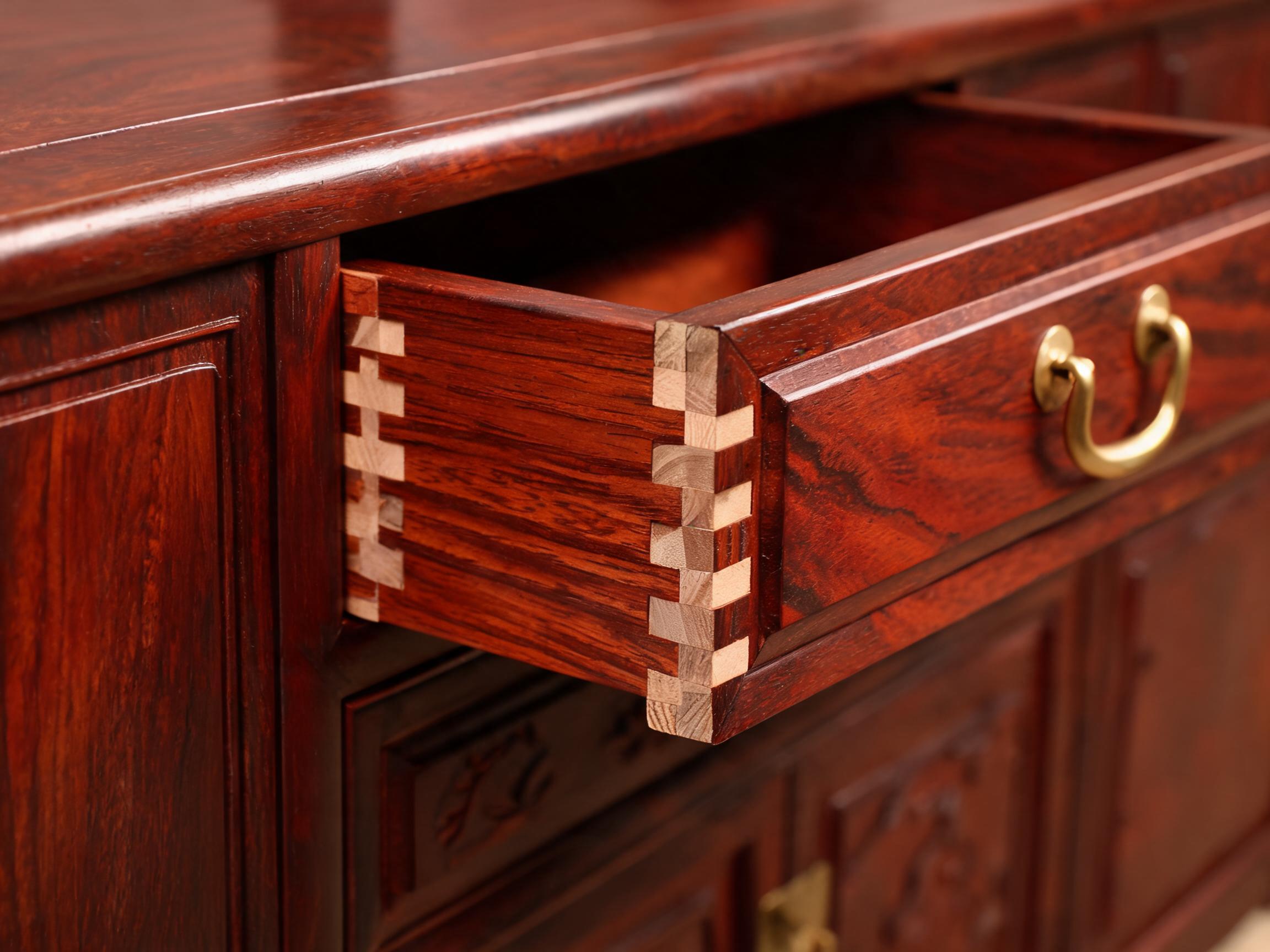

The hand-cut half-blind dovetail drawers are inspected at the same station: pin-to-tail ratio is checked at 1:6, and each drawer is slid through twenty full open-close cycles to confirm smooth travel without binding.

Enterprise Capability

Yunxiao Rosewood Furniture Co., Ltd. has produced classical redwood furniture in Xianyou since 2008. The workshop maintains FSC chain-of-custody documentation and CITES export permit registration for Dalbergia cochinchinensis shipments. Production capacity, employee count, and client references are available upon request. OEM carving customization and ODM design development are supported with a 15-day design approval cycle.

Exhibition Experience

Yunxiao Rosewood Furniture Co., Ltd. engages with international buyers through Canton Fair and Shanghai International Furniture Fair participation. Specific booth numbers and dates are available on request. Buyers visiting Xianyou can arrange a workshop tour to inspect timber stock, carving stations, and the lacquer curing room.

Export Packaging and Documentation

The cabinet is wrapped in acid-free tissue paper and corrugated cardboard, then packed in an ISPM-15 heat-treated wooden crate with EPS foam corner blocks. Gross weight per crate is approximately 75 kg. Every shipment includes CITES export permits, FSC chain-of-custody certificate, commercial invoice with HS code 9403.60, and a wood drying certificate.
