Classical Siamese Rosewood Sideboard with Dovetail Drawers

Buyer Pain Point and Our Solution

The pain point: drawers that sag and joints that loosen within the first year. Distributors and hospitality buyers who source sideboards from mixed-material factories keep running into the same failure: drawer boxes built on metal slides and thin plywood bind, sag, and pull away from the case after a season of daily use, and frames assembled from mixed wood species expand at different rates and work the joints apart. For an importer or project buyer this is not a cosmetic issue — every failed drawer means a warranty claim, a replacement shipment, an unhappy retail or hotel client, and margin quietly eroded on an already-committed order.

Our solution: build the drawer and the frame so they are designed to resist these failure modes. This sideboard is made of solid Siamese rosewood (Dalbergia cochinchinensis) heartwood throughout — no veneer, no MDF, no hidden substitutes in structural members — so every part of the case moves at the same rate with the seasons. All six drawer boxes use hand-cut through-dovetails at the front and half-blind dovetails at the rear, cut at the traditional 1:6 pin ratio, running on wooden runners instead of metal slides; the frame uses mortise-and-tenon joinery with no metal fasteners. Every board is kiln-conditioned to 8-12% moisture over a 4-week cycle with a 48-hour equalization period, and each finished drawer is cycled 50 times and each frame load-tested with 60 kg for 24 hours before packing. The value to you: drawers that still run smoothly and joints that stay tight years after the container lands, backed by a 24-month structural warranty under normal indoor use — fewer claims, fewer replacements, and a lower real cost per piece sold.

Dimensions at a Glance

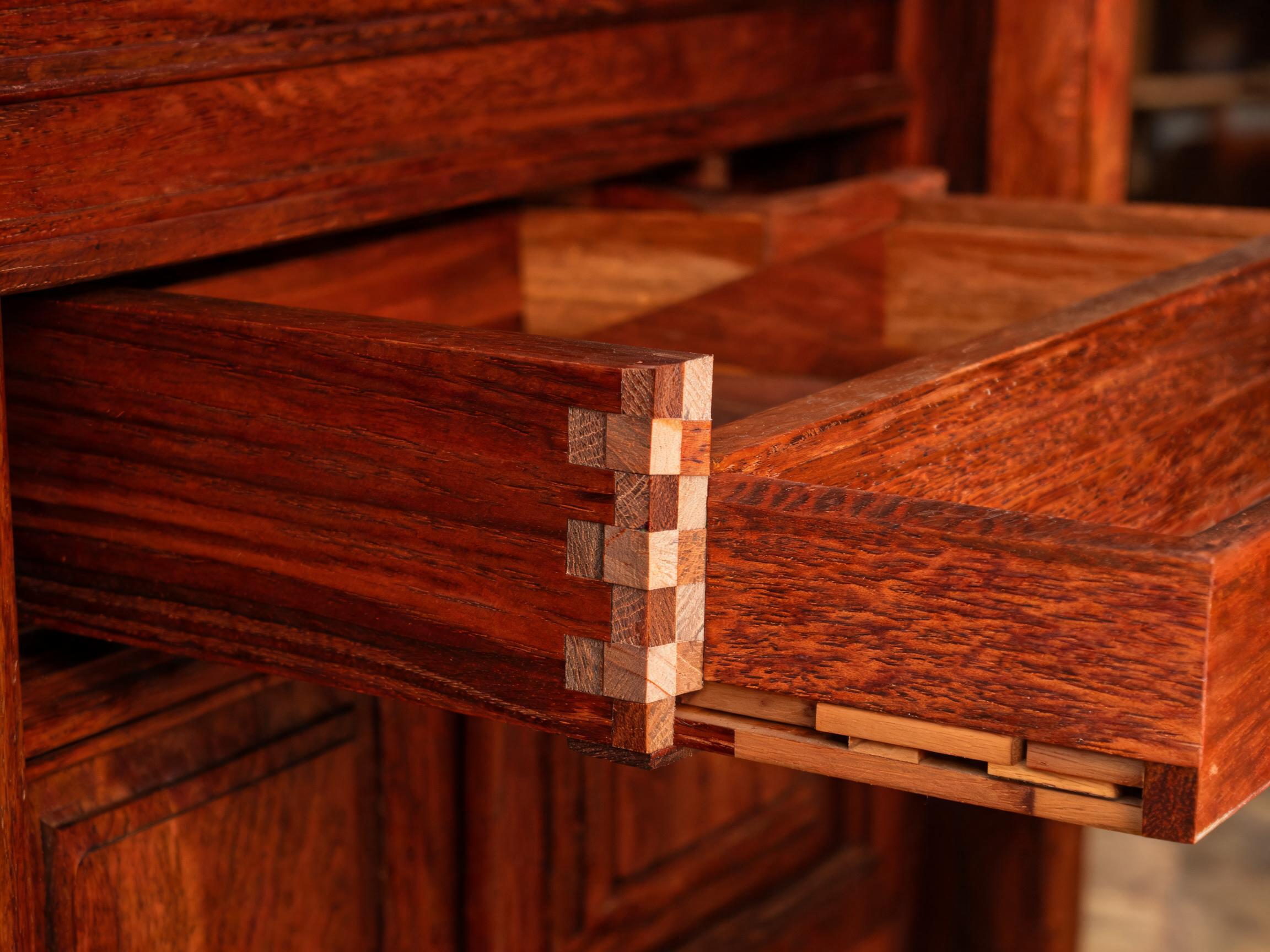

Hand-Cut Dovetail Drawer Construction

All six drawer boxes use hand-cut through-dovetail joints at the front corner and half-blind dovetails at the rear. The dovetail pins are cut at a 1:6 ratio, which is the traditional Chinese furniture standard for hardwood drawers. Drawer bottoms are set in grooved sides and slide on wooden runners, not metal slides. This construction method allows the drawer to be repaired without disassembling the sideboard case.

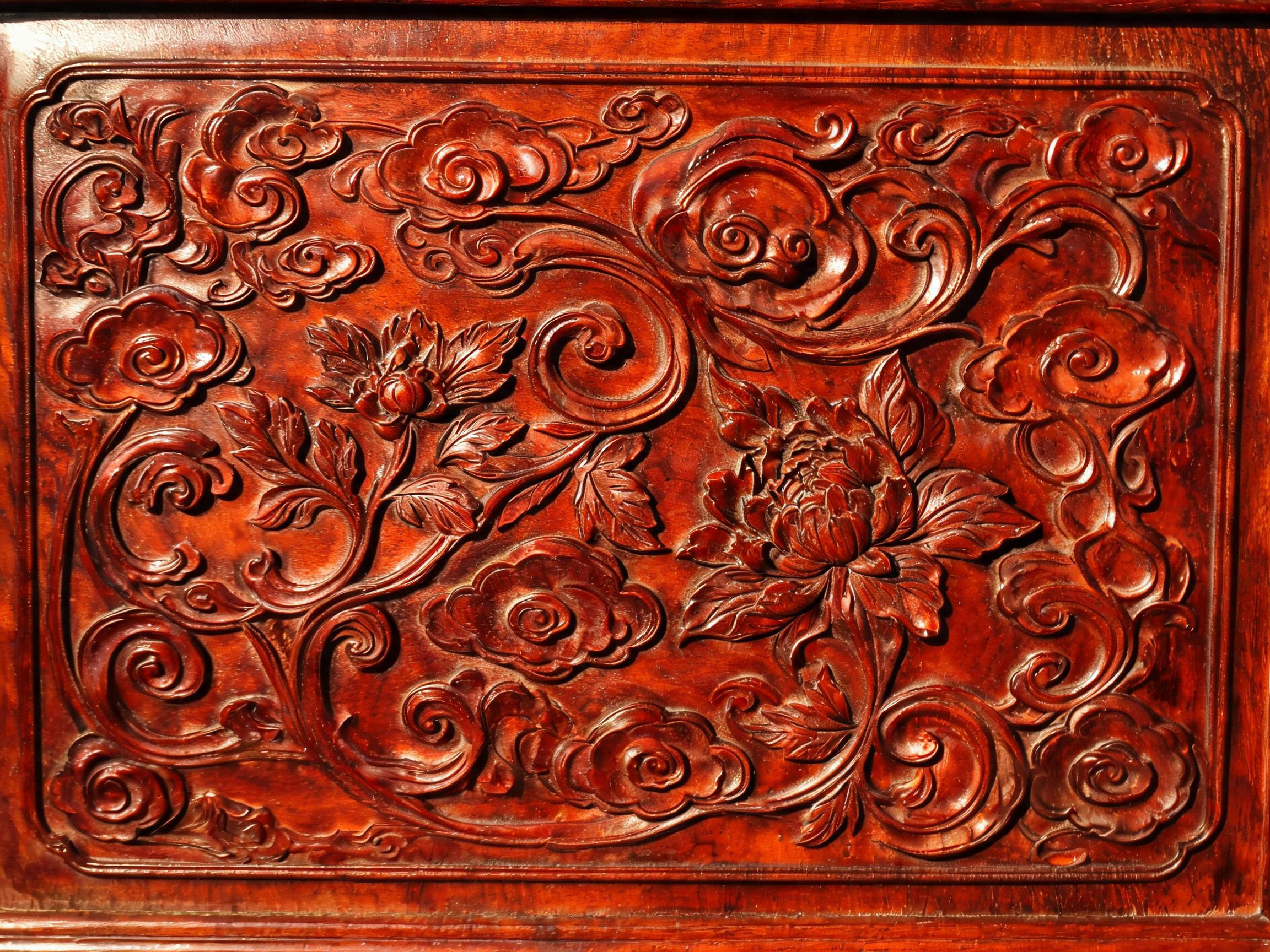

Hand-Carved Apron and Base Detail

The sideboard features hand-carved auspicious motifs on the apron above the lower doors and along the bottom base. The carving is executed in medium relief at 2-4 mm depth, with the background recessed to create visual depth. Each sideboard requires approximately 25 carving hours. The carver uses chisels ranging from 2 mm to 10 mm width, with the flowing cloud and floral curves being the most technically demanding elements.

Manufacturing Workflow

This sideboard follows a five-stage production sequence:

• Stage 1 - Timber Heartwood Selection: Siamese rosewood boards are inspected for heartwood ratio. Only boards with a heartwood percentage exceeding 80 percent proceed to this product line.

• Stage 2 - Kiln Conditioning: Selected timber is kiln-dried to 8 to 12 percent moisture content over a 4-week cycle with gradual temperature ramping. A 48-hour equalization period follows.

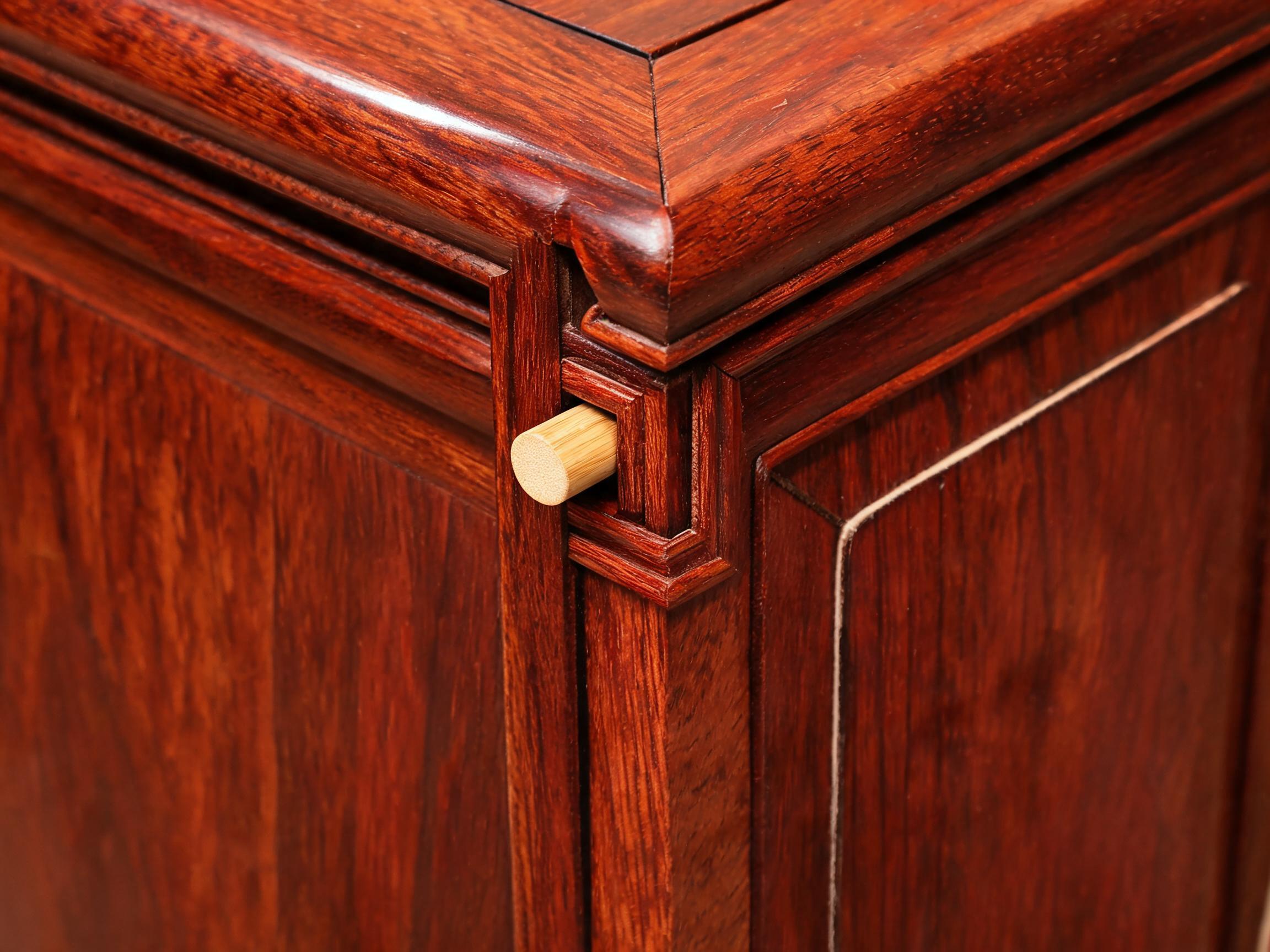

• Stage 3 - Frame Joinery and Dovetail Drawers: Mortise-and-tenon joints are cut to 18 mm tenon depth on rails and 16 mm on stiles. Drawer dovetails are cut by hand at a 1:6 ratio. Corner blocks are installed at every right-angle intersection.

• Stage 4 - Apron and Base Carving: Auspicious motifs are carved after frame assembly. The carver works from a reference drawing but adjusts the motif to the grain of each board.

• Stage 5 - Seven-Coat Lacquer Finishing: Seven coats of raw lacquer are applied by hand, each cured for 24 hours and rubbed with pumice stone. The final coat achieves a deep satin sheen.

Quality Inspection

• Heartwood Ratio Verification: Each board is visually inspected for sapwood percentage. Boards exceeding 20 percent sapwood are diverted to other product lines.

• Dovetail Fit Check: Each drawer is cycled 50 times on its runner. Any drawer binding or loosening is re-fitted.

• Joint Stress Test: Assembled sideboard frames are loaded with 60 kg of distributed weight for 24 hours. Any joint showing visible separation is re-fitted.

• Carving Depth Check: Relief depths are verified with a depth gauge at five points per panel.

• Moisture Audit: Three-point readings per sideboard. Readings outside 8 to 12 percent require re-conditioning.

Enterprise Capability

Yunxiao Rosewood Furniture Co., Ltd. has produced classical redwood furniture in Xianyou since 2008. The workshop maintains FSC chain-of-custody documentation and CITES export permit registration for Dalbergia cochinchinensis shipments; certificate copies can be provided with the proforma invoice. Production capacity, employee count, and client references are available upon request. OEM carving customization and ODM design development are supported with a 15-day design approval cycle.

Export Packaging and Documentation

The sideboard is wrapped in acid-free tissue paper and corrugated cardboard, then packed in an ISPM-15 heat-treated wooden crate with EPS foam corner blocks. Gross weight per crate is approximately 65 kg. Every shipment includes CITES export permits, FSC chain-of-custody certificate, commercial invoice with HS code 9403.60, and a wood drying certificate. Copies of the FSC chain-of-custody certificate and CITES export permit can be attached to the proforma invoice for your compliance review before ordering.
