Classical Redwood Canopy Bed 3-Piece Bedroom Set

Buyer Pain Point and Our Solution

The pain point: canopy beds whose posts arrive finger-jointed and whose canopy frames wobble after assembly. Importers sourcing canopy beds for compact bedrooms face two recurring problems: most suppliers offer full five-piece suites that are too large and too expensive for rooms under 15 square metres, and the canopy beds they do find use finger-jointed or veneered posts that crack at the joint line under load, with canopy frames that wobble because the connection relies on metal brackets rather than proper joinery. For the buyer this means a bed that fails inspection before the guest ever checks in, plus the freight cost of returning a 2-metre-tall frame.

Our solution: a focused three-piece set with single-section posts and through-wedged canopy joinery. The four corner posts are cut from single solid Siamese rosewood sections — any post with a bend exceeding 1.5 mm over its length is diverted — and the canopy frame connects to the posts with through-tenons that pass 15 mm through the post top and are wedged from above, a traditional Chinese construction method that locks the frame without metal hardware. Posts are joined to side rails with 20 mm tenon-depth mortise-and-tenon joints, timber is kiln-dried to 8-12% moisture, and the assembled frame is tested to our in-house standards: 150 kg distributed load for 24 hours plus a 10 kg lateral force test at each canopy corner. The value to you: a compact three-piece configuration (canopy bed plus two nightstands) that fits rooms from 12 square metres upward, a bed frame that has passed these in-house structural tests before packing, and a 24-month structural warranty behind it.

Three-Piece Configuration

• 1 canopy bed frame (king 180 cm x 200 cm or queen 150 cm x 200 cm, selectable at order)

• 2 matching nightstands (50 cm x 40 cm x 55 cm each)

Buyers who need a wardrobe and dresser can add those pieces separately from our catalogue. The three-piece set is designed as a starting configuration for projects where room dimensions or budget do not accommodate a full five-piece suite.

Dimensions at a Glance

Canopy Bed Construction

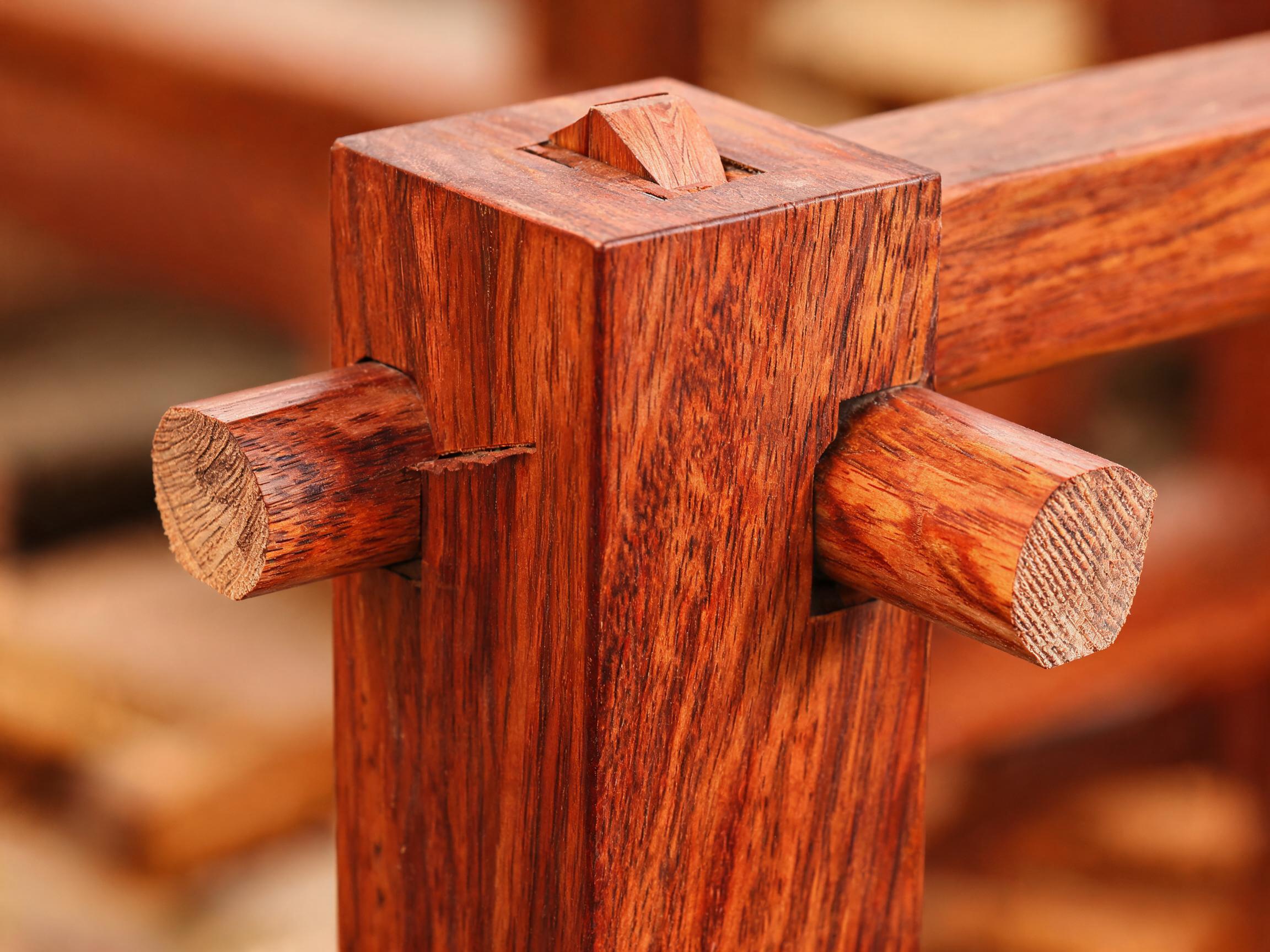

The four corner posts are cut from single solid Siamese rosewood timber sections, not finger-jointed or veneered. This preserves the load path from the canopy rail to the floor without a glued joint in between. Posts are connected to the side rails using mortise-and-tenon joints secured with wooden dowels. The canopy frame sits atop the posts, connected by through-tenons that pass completely through the post top and are wedged from above. This is a traditional Chinese bed construction method that locks the canopy frame to the posts without metal hardware.

The slat base sits recessed into the side rails and supports a standard innerspring or latex mattress without a box spring. Cross-slats are spaced at approximately 90 mm centres to limit mattress sag over years of use.

Manufacturing Process

• Stage 1 - Post Selection: Corner posts are cut from the straightest, clearest timber sections in the batch. Any post with a bend exceeding 1.5 mm over its length is diverted to shorter components.

• Stage 2 - Kiln Conditioning: Timber is kiln-dried to 8 to 12 percent moisture content with a 48-hour equalization period. Moisture is verified per board before joinery.

• Stage 3 - Joinery Cutting: Mortise-and-tenon joints are cut to 20 mm tenon depth on post-to-rail connections. Through-tenons for the canopy frame are cut to pass 15 mm through the post top, with a wedge slot for locking.

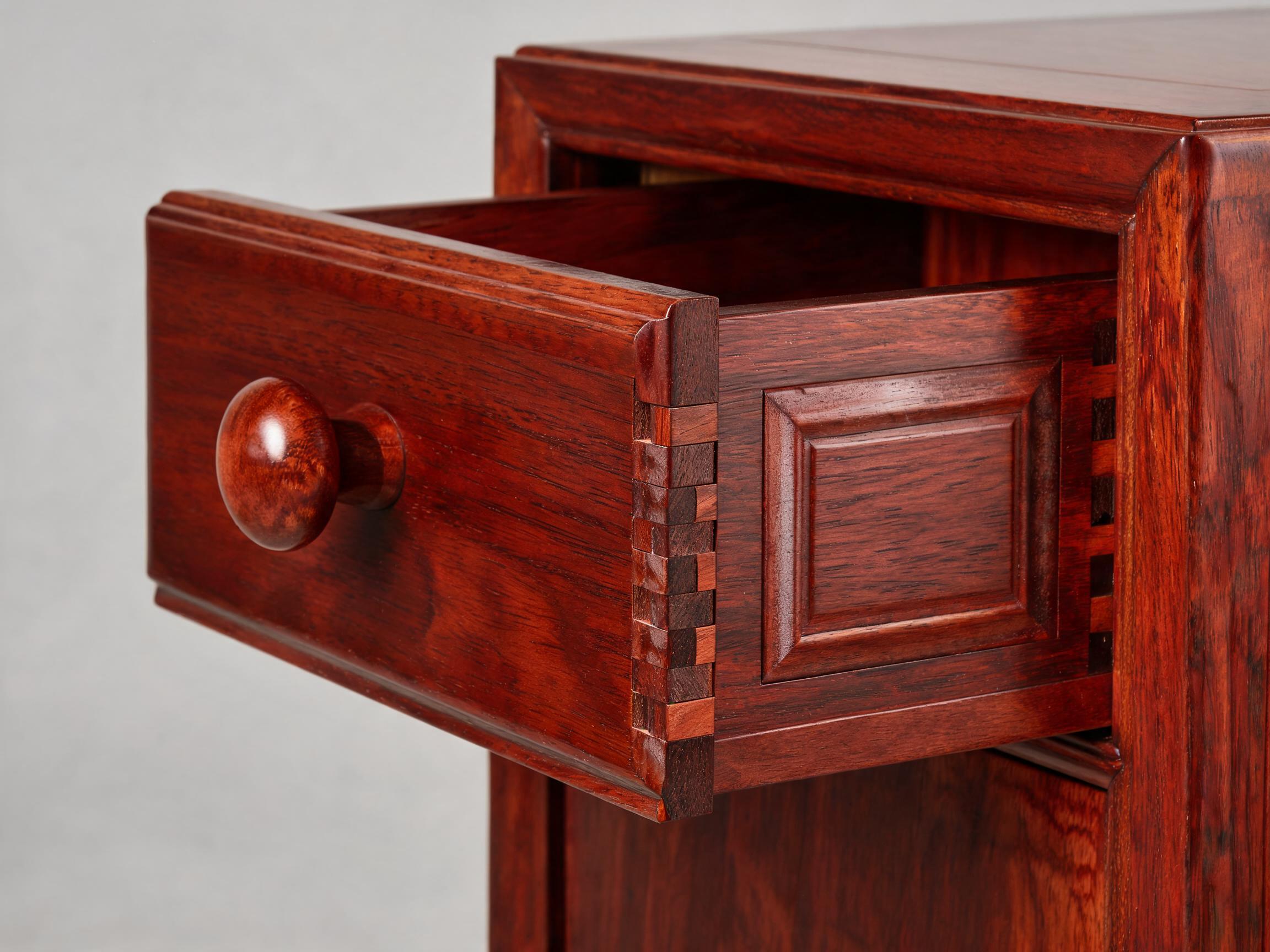

• Stage 4 - Assembly: The bed frame is dry-fitted before glue application to verify alignment. Nightstands are assembled with dovetail drawer boxes and floating-panel sides.

• Stage 5 - Lacquer Finishing: Seven coats of raw lacquer are applied by hand, each cured for 24 hours and hand-rubbed with pumice stone.

Quality Inspection

• Post Straightness: Each post is checked with a straightedge. Bends exceeding 1.5 mm trigger re-selection. This is the same 1.5 mm tolerance applied at the post-selection stage, so the manufacturing and inspection criteria are identical.

• Joint Integrity: The assembled bed frame is loaded with 150 kg distributed weight for 24 hours. Any joint showing separation is re-fitted.

• Canopy Frame Stability: The canopy frame is tested by applying 10 kg of lateral force at each corner. Movement exceeding 3 mm requires wedge re-fitting.

• Moisture Audit: Three-point readings per piece. Readings outside 8 to 12 percent require re-conditioning.

• Finish Inspection: Surface inspected under 5000K LED lighting. Defects reworked before packing.

Enterprise Capability

Yunxiao Rosewood Furniture Co., Ltd. has produced classical redwood furniture in Xianyou since 2008. The workshop maintains FSC chain-of-custody documentation and CITES export permit registration. Production capacity and client references are available upon request. OEM custom dimensions and ODM design development are supported with a 15-day design approval cycle.

Trade Show Experience

Yunxiao Rosewood Furniture Co., Ltd. engages with international buyers through Canton Fair and Shanghai International Furniture Fair channels. Specific booth information is available on request. Workshop tours in Xianyou can be arranged for buyers inspecting timber stock and production stages.

Packaging and Documentation

The bed frame ships flat-packed (posts, rails, canopy frame, and slat base separated) in one crate. Nightstands ship fully assembled in a second crate. All packaging uses ISPM-15 heat-treated timber with EPS foam corner blocks. Every shipment includes CITES export permits, FSC certificate, commercial invoice with HS code 9403.60, and a wood drying certificate.
